Specification
|
General |
|
|
Model Number |
WT-D99 |
|
Frequency Range |
VHF:136-174MHz UHF:400-470MHz |
|
Power |
10W |
|
Channel Capacity |
16 |
|
Battery Capacity |
Li-ion 4800mAh |
|
Working Voltage |
DC 7.4V |
|
Antenna Impedance |
50Ω |
|
Weight (Include battery) |
335g |
|
Size(Include antenna) |
140x62x45mm |
|
Transmitter |
|
|
Output Power |
10W/5W/3W |
|
Modulation maximum deviation |
2.5KHz@12.5KHz |
|
Frequency stability |
+/-1.5ppm |
|
Hum and noise |
-40dB@12.5KHz |
|
Spurious radiation |
9Khz-1Ghz: <-36dBm 1Ghz-12.75Ghz: >-30dBm |
|
Receiver |
|
|
Digital sensitivity |
0.3uV/-117.4dBm(BER5%) 0.7uV/-110dBm(BER1%) |
|
Adjacent channel selectivity |
TIA603C:65dB ETSI:60dB |
|
Co-channel rejection |
12dB@12.5KHz |
|
Spurious response |
TIA603C：70dB ETSI:70dB |
|
Spurious radiation |
9Khz-1GHz: <-57dBm 1Ghz-12.75Ghz: >-47dBm |
Functions
Dual slots
TDMA dual slots can greatly increase the communication capacity.
32 channels (double area)
Voice encryption
Encryption key can be set via software,which can scramble and unscramble the voice call in encryption channels.
Usually one radio can only have one encryption key.

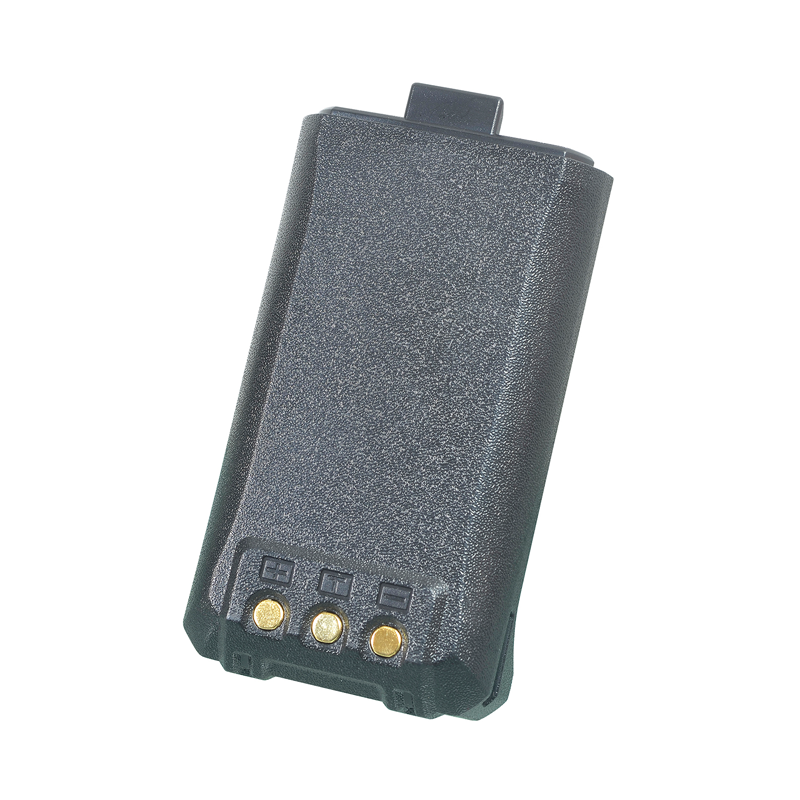

High capacity 4800mAh Li-ion battery
Digital signaling
D99 can support varieties of calls,it supports individual group and all call; it also can kill and wake up other radios.
Individual call
It supports point to point communications,only you and the other can talk with each other, protecting the privacy.
Group call
A certain members can be set as a group to communicate together,which greatly improve the efficiency of the communications among the group.
All call
One radio can talk with all the radios that on the same channel,no matter which group the radio is ,this is very useful for dispatching.
Application site
Package and shipping
By air/sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS etc.
1. UPS, DHL, EMS, HK EMS, FEDEX, HK post, TNT and so on (door to door)
2. Express shipping period varies depending upon your location. Normally, it will take around 3-7days from China to destination country, but some remote places need more 1-3 days.
3. Custom fee (including VAT&GST):
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office before bidding. We will try our best to help customer do customs clearance.
4. Delivery Time:
Sample order 3-5 working days, bulk order 25-30 working days.
